Product Model
NetSure 7200 Series
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Telecom
- Data Center/Colocation/Hosting
- Government
Product Model
NetSure 7200 Series
Best Suited For:
- Telecom
- Data Center/Colocation/Hosting
- Government
Benefits
Optimized total cost of ownership
Safe and simple to install and operate
Enhanced real-time visibility into what's powering your network
Includes DHCP Ethernet connection and local access via an additional port with a default IP address
Meets strict agency standards for safety and reliability
Reduce energy cost with high-efficiency eSure rectifiers
Low initial investment with scalable configuration thatallows for incrementalsystem growth
High reliability with N+1 configuration redundancy
Features
Advanced controller offers battery management, AC service monitoring, site monitoring and configuration management
Remote access supports HTTPS with multiple browsers, network element management via Modbus or SNMP (v2 or v3)
Dual Ethernet port option
Modular design with hot-swappable rectifiers and distribution units
High system efficiency over 96%
Multi-bay configurations
Multiple AC input configurations
NEBS Level 3 certified andUL Listed to UL subject 1801
Specifications
NetSure 7200 Series
- Product Overview
- Power Capacity
- 600 kW
- Current Capacity
- 12,000 A
- Output Voltage, Nominal
- -48 VDC
- Input Voltage, Nominal
- 208/240 or 277/480 VAC
- System Type
- Cabinet
- Input
- Input Voltage, Nominal
- 208/240 or 277/480 VAC

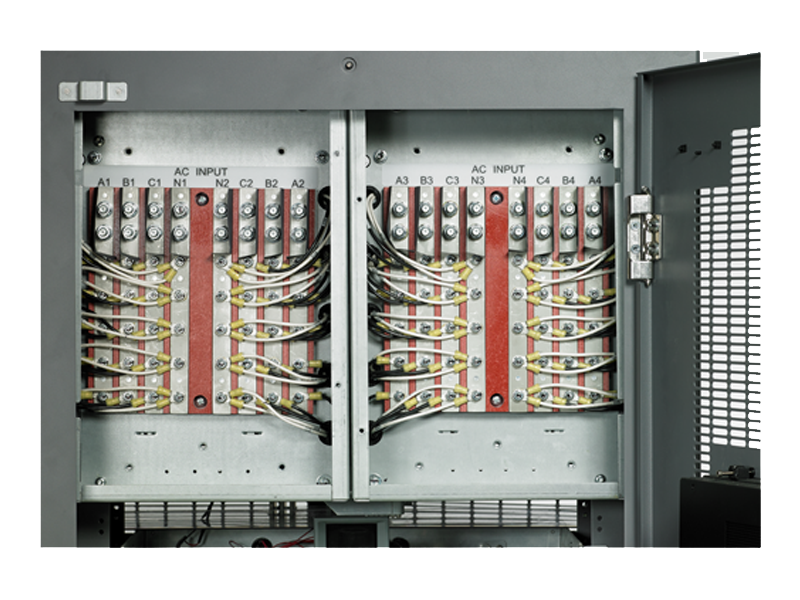

- Input Connections
- Terminal Strip
- Access
- Rear
- Output
- Output Voltage, Nominal
- -48 VDC
- Output Voltage, Operational
- 42 to 58 VDC
- Output Capacity
- System 12000 amps; Bay 4000 amps (48VDC); Rectifier 3500 W (R48-3500e)
- Peak Efficiency
- 96.2%
- Load Circuit Breakers / Fuses
- TPS/TLS, TPL, TPH Fuses; GJ/218, Bullet Circuit Breakers
- Physical Characteristics
- Weight
- 442-555 kgs
- Height
- 2134 mm
- Width
- 762 - 6096 mm
- Depth
- 762 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- Dual Ethernet Embedded web pages, SNMP, Modbus;Programmable Relay Outputs and Binary Inputs
- Operating Temperature
- 0°C to +40°C (+32°F to +104°F)
- Safety Compliance
- Power Bay; UL 60950 Listed (“c UL”), NEBS; Distribution Bay UL 1801 Listed (“c UL”), NEBS
- EMC Compliance
- FCC Class B
Brochures and Data Sheets
Technical Specifications
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
